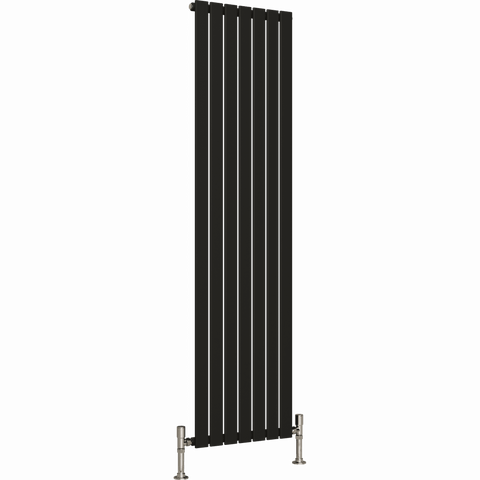

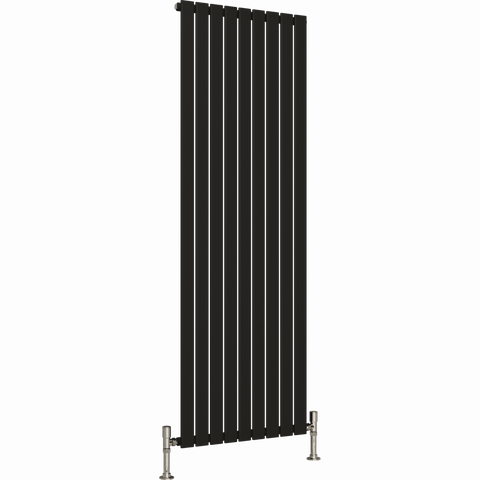

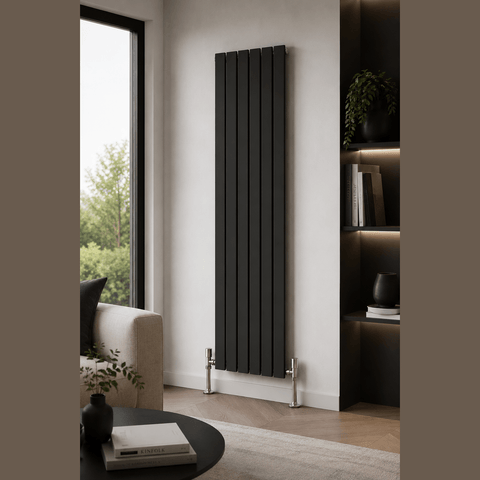

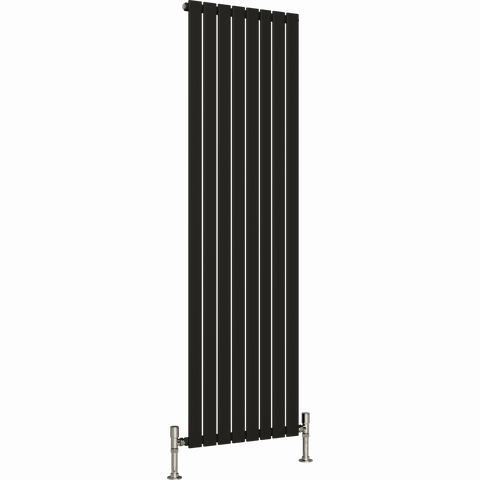

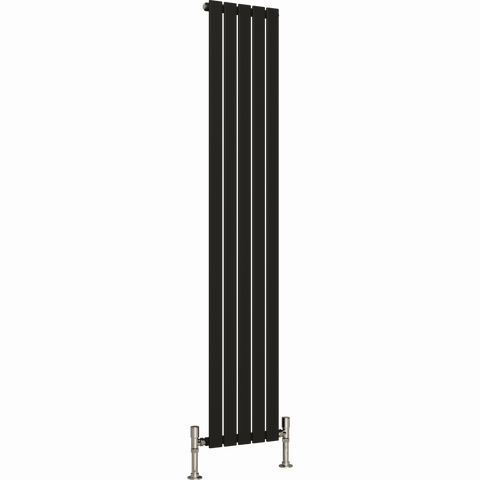

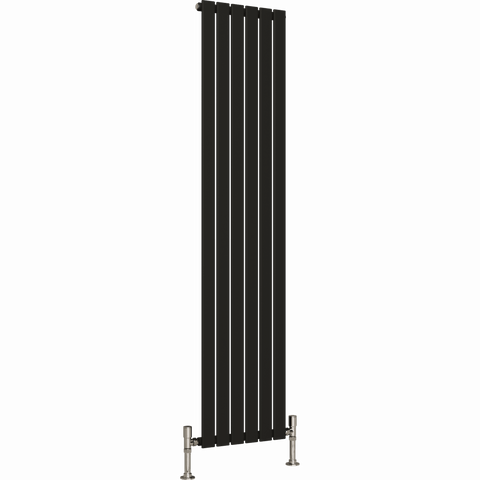

UB Trade Flat Column Single Vertical Radiator - Black
UB Trade Flat Column Single Vertical Radiator - Black
The UB Trade Flat Column Single Vertical Radiator - Black is a modern designer radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Flat Column range features a clean flat-panel design with strong heat output and a minimalist designer look.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- Black finish
- Vertical installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size mm | Pipe Centres mm | Wall to Pipe Centres mm | Wall Distance mm | Sections | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 1800 x 350 | 350 | 50 | 79 | 5 | 2885 BTU / 846 W |
| 1800 x 420 | 420 | 50 | 79 | 6 | 3462 BTU / 1015 W |
| 1800 x 490 | 490 | 50 | 79 | 7 | 4038 BTU / 1184 W |
| 1800 x 560 | 560 | 50 | 79 | 8 | 4617 BTU / 1354 W |
| 1800 x 630 | 630 | 50 | 79 | 9 | 5193 BTU / 1523 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
