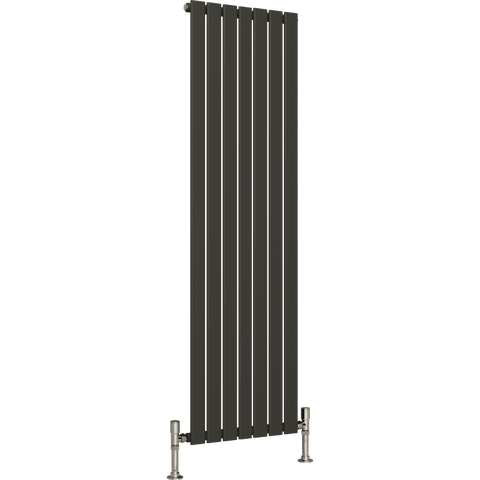

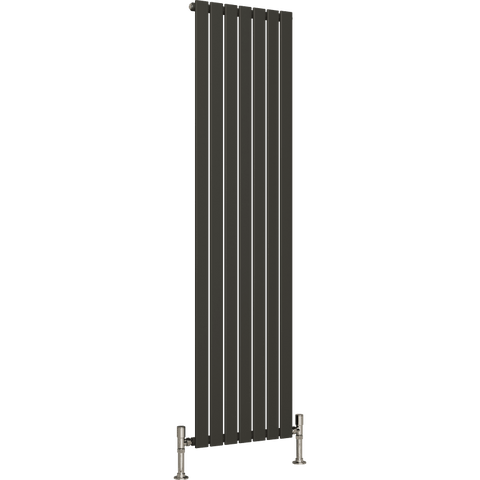

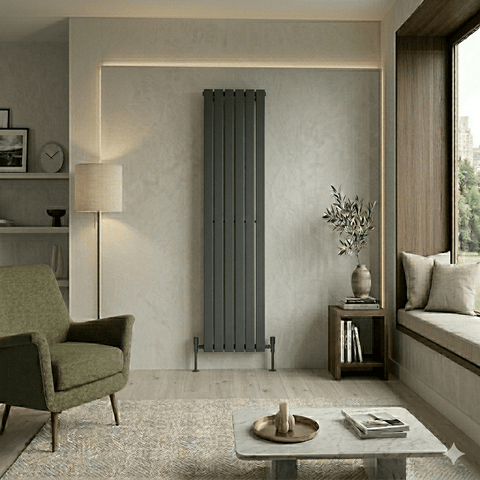

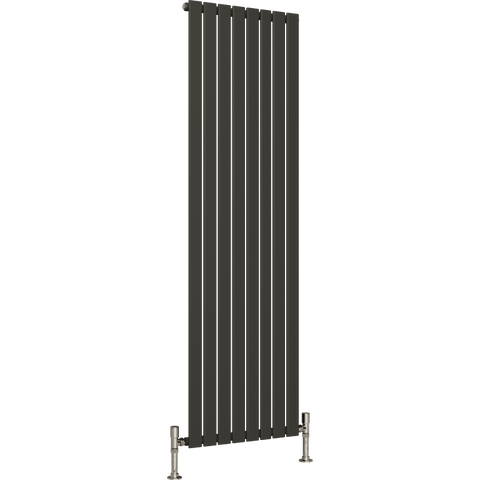

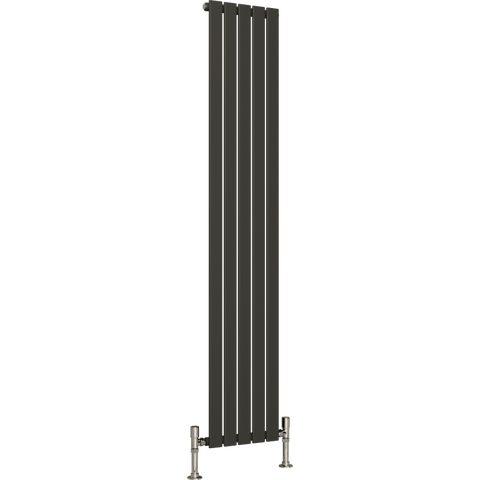

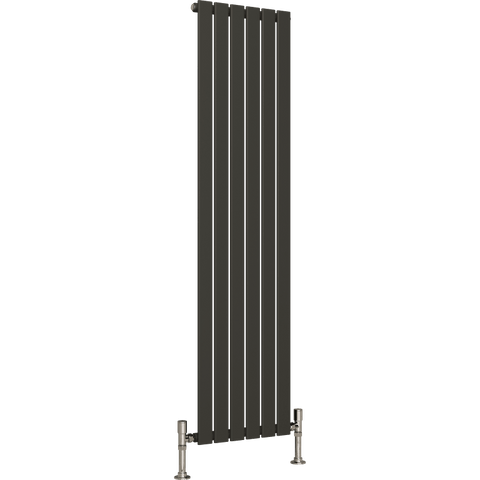

UB Trade Flat Column Single Vertical Radiator - Anthracite
UB Trade Flat Column Single Vertical Radiator - Anthracite
The UB Trade Flat Column Single Vertical Radiator - Anthracite is a modern designer radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Flat Column range features a clean flat-panel design with strong heat output and a minimalist designer look.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- Anthracite finish
- Vertical installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size | Pipe Centres | Wall to Pipe Centres | Wall Distance | Tubes | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 1600 x 420 mm | 420 mm | 50 mm | 79 mm | 6 | 3126 BTU / 917 W |
| 1600 x 490 mm | 490 mm | 50 mm | 79 mm | 7 | 3647 BTU / 1070 W |
| 1600 x 560 mm | 560 mm | 50 mm | 79 mm | 8 | 4168 BTU / 1222 W |
| 1800 x 350 mm | 350 mm | 50 mm | 79 mm | 5 | 2885 BTU / 846 W |
| 1800 x 420 mm | 420 mm | 50 mm | 79 mm | 6 | 3462 BTU / 1015 W |
| 1800 x 490 mm | 490 mm | 50 mm | 79 mm | 7 | 4038 BTU / 1184 W |
| 1800 x 560 mm | 560 mm | 50 mm | 79 mm | 8 | 4617 BTU / 1354 W |
| 1800 x 630 mm | 630 mm | 50 mm | 79 mm | 9 | 5193 BTU / 1523 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
