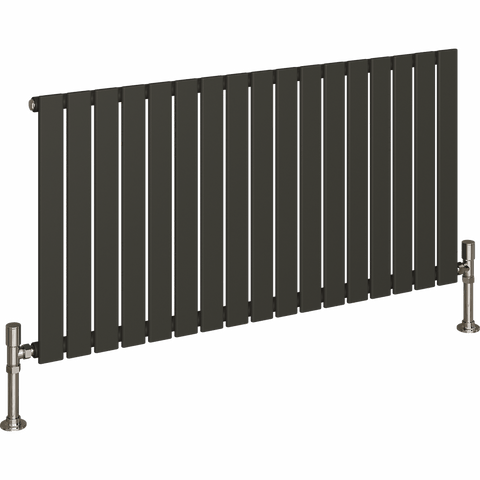

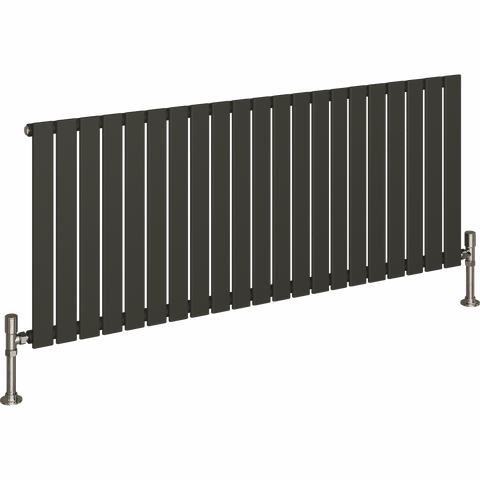

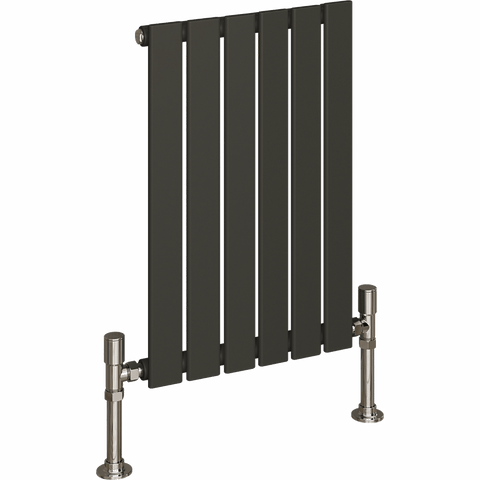

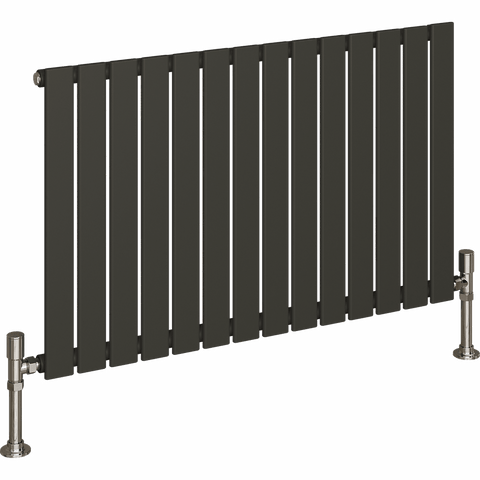

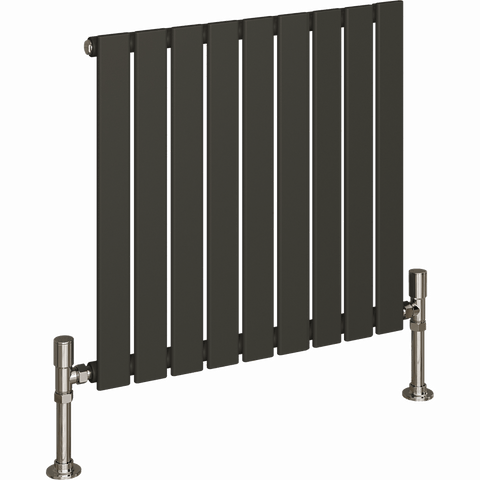

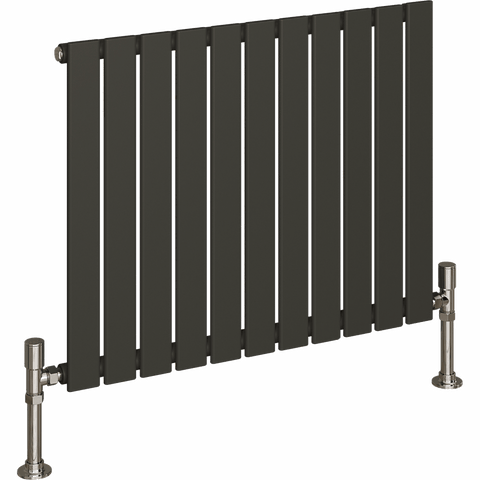

UB Trade Flat Column Single Horizontal Radiator - Anthracite
UB Trade Flat Column Single Horizontal Radiator - Anthracite
The UB Trade Flat Column Single Horizontal Radiator - Anthracite is a modern designer radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Flat Column range features a clean flat-panel design with strong heat output and a minimalist designer look.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- Anthracite finish
- Horizontal installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size | Pipe Centres | Wall to Pipe Centres | Wall Distance | Tubes | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 600 x 420 mm | 420 mm | 50 mm | 79 mm | 6 | 1220 BTU / 358 W |
| 600 x 630 mm | 630 mm | 50 mm | 79 mm | 9 | 1830 BTU / 537 W |
| 600 x 770 mm | 770 mm | 50 mm | 79 mm | 11 | 2236 BTU / 656 W |
| 600 x 980 mm | 980 mm | 50 mm | 79 mm | 14 | 2845 BTU / 834 W |
| 600 x 1190 mm | 1190 mm | 50 mm | 79 mm | 17 | 3457 BTU / 1014 W |
| 600 x 1470 mm | 1470 mm | 50 mm | 79 mm | 21 | 4271 BTU / 1252 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
