UB Trade Classic 6 Column Horizontal Radiator

UB Trade Classic Column 6 Column Horizontal Radiator - White

£240⁴⁰
Save £264

Quantity

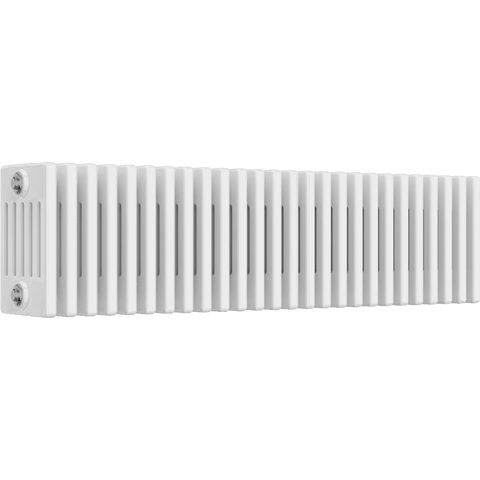

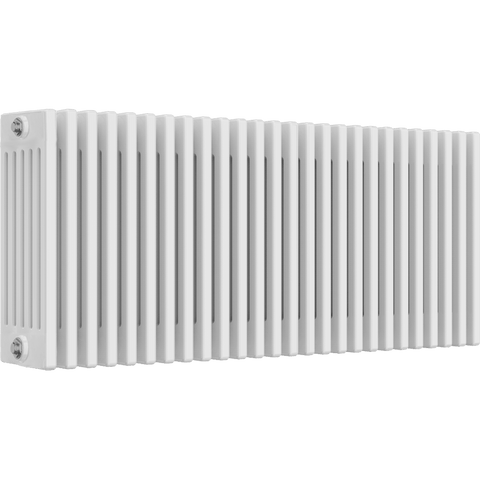

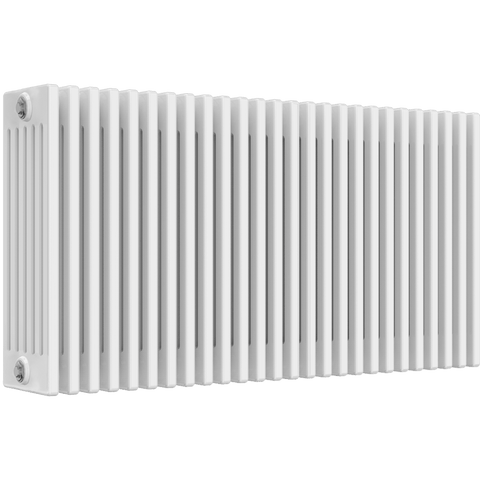

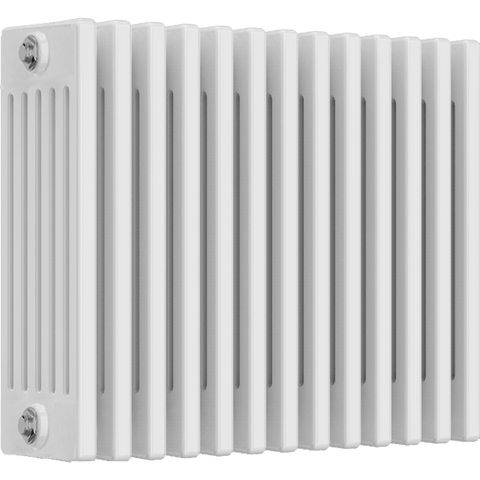

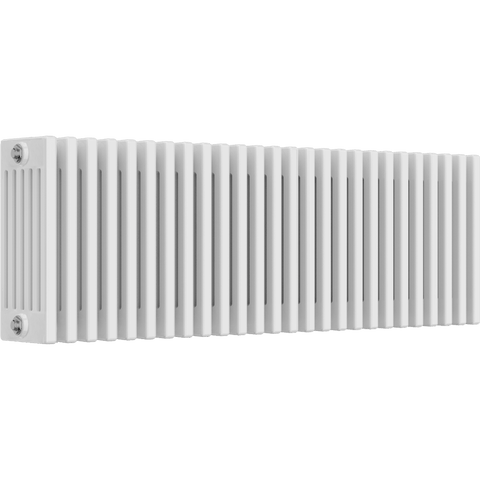

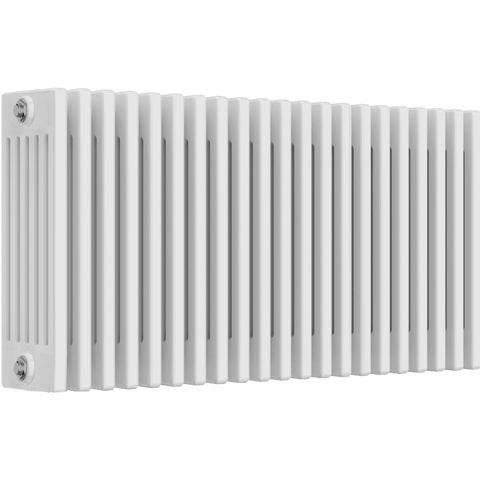

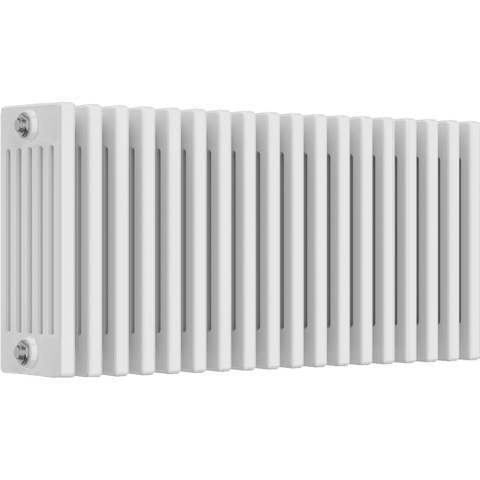

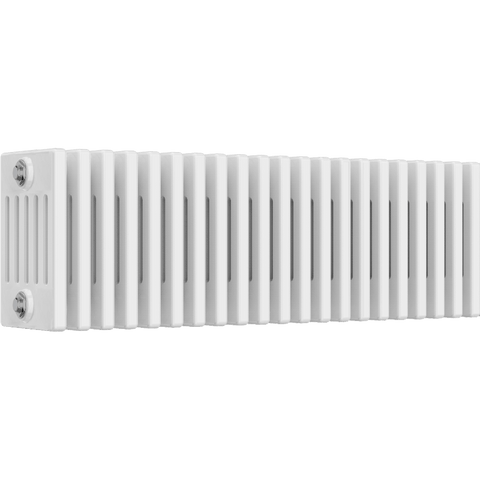

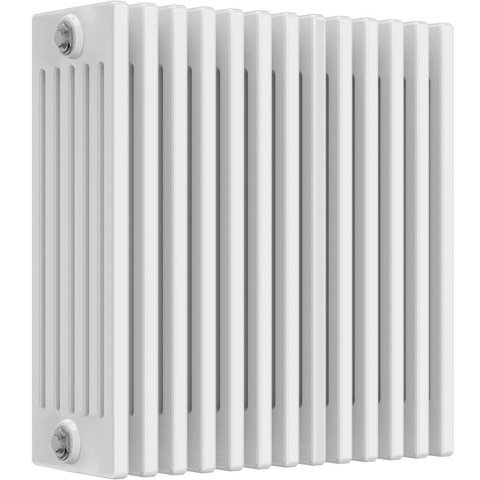

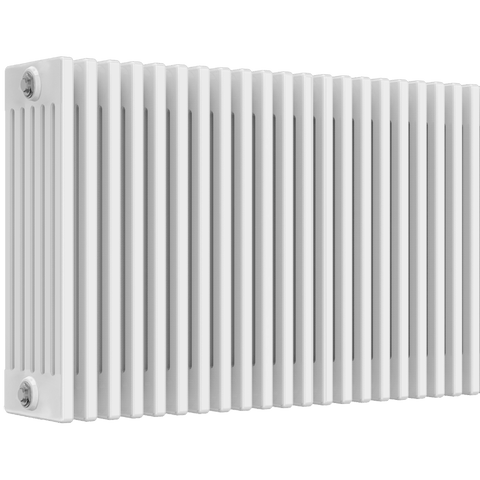

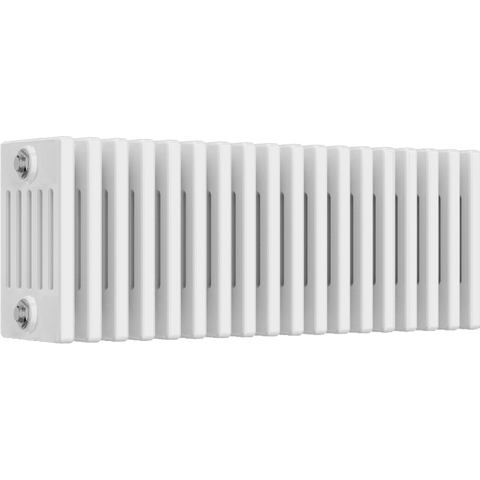

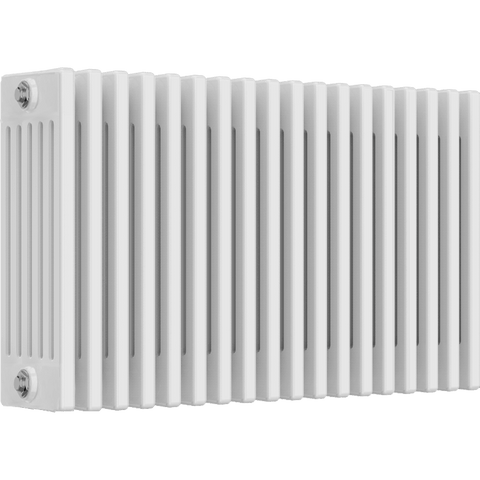

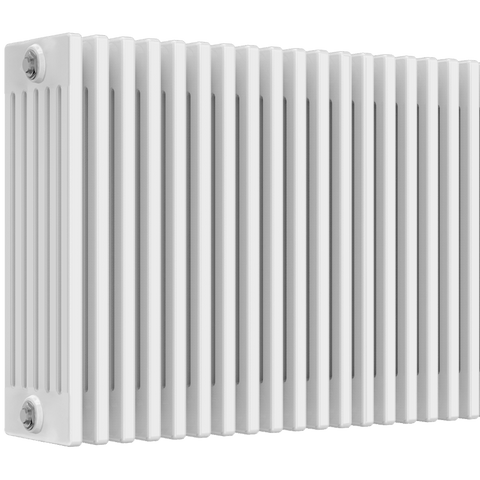

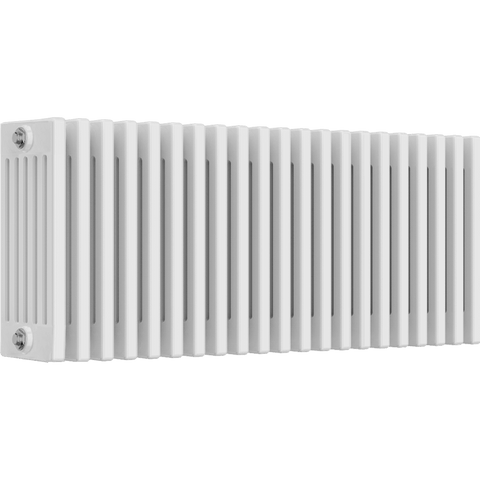

UB Trade Classic Column 6 Column Horizontal Radiator - White

The UB Trade Classic Column 6 Column Horizontal Radiator - White is a traditional column radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.

The Trade Classic Column range has a timeless column radiator appearance, making it ideal for both period-inspired and contemporary spaces.

Key Features

Premium quality steel construction
5 year manufacturer guarantee
White finish
Horizontal installation
Suitable for central heating systems
Available in multiple size options
Wall brackets, air vent and end plug supplied

Technical Specifications

Size	Pipe Centres	Wall to Pipe Centres	Wall Distance	Sections	Heat Output ΔT60
300 x 830 mm	830 mm	133 mm	243 mm	18	4591 BTU / 1346 W
300 x 965 mm	965 mm	133 mm	243 mm	21	5330 BTU / 1563 W
300 x 1190 mm	1190 mm	133 mm	243 mm	26	6390 BTU / 1874 W
400 x 830 mm	830 mm	133 mm	243 mm	18	6122 BTU / 1795 W
400 x 965 mm	965 mm	133 mm	243 mm	21	7106 BTU / 2084 W
400 x 1190 mm	1190 mm	133 mm	243 mm	26	8520 BTU / 2499 W
500 x 605 mm	605 mm	133 mm	243 mm	13	5263 BTU / 1543 W
500 x 830 mm	830 mm	133 mm	243 mm	18	7379 BTU / 2164 W
500 x 965 mm	965 mm	133 mm	243 mm	21	8612 BTU / 2526 W
500 x 1190 mm	1190 mm	133 mm	243 mm	26	10721 BTU / 3144 W
600 x 605 mm	605 mm	133 mm	243 mm	13	6240 BTU / 1830 W
600 x 830 mm	830 mm	133 mm	243 mm	18	8699 BTU / 2551 W
600 x 965 mm	965 mm	133 mm	243 mm	21	10148 BTU / 2976 W
600 x 1190 mm	1190 mm	133 mm	243 mm	26	12274 BTU / 3599 W

Installation note: For pipe centre measurement including valves, add 90mm accordingly.

All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
