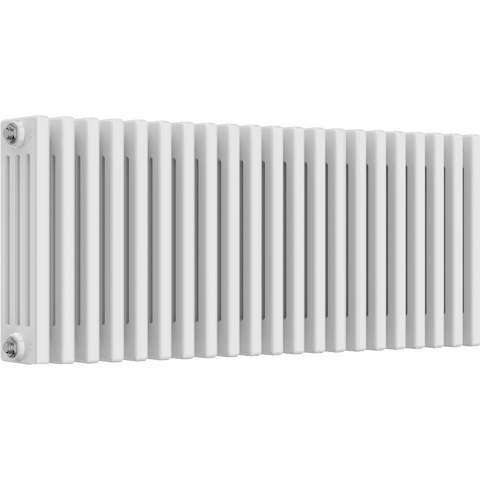

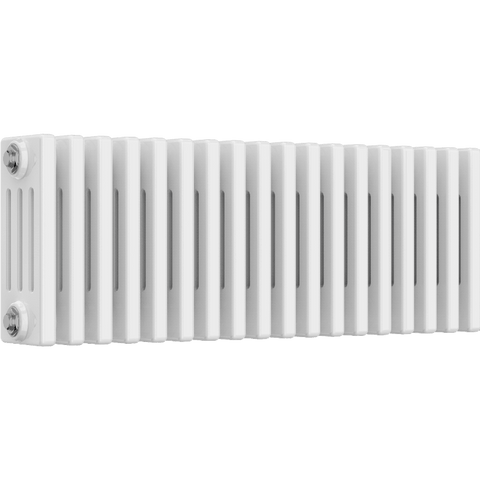

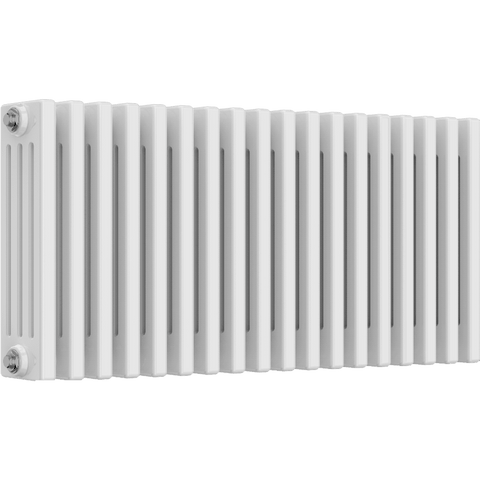

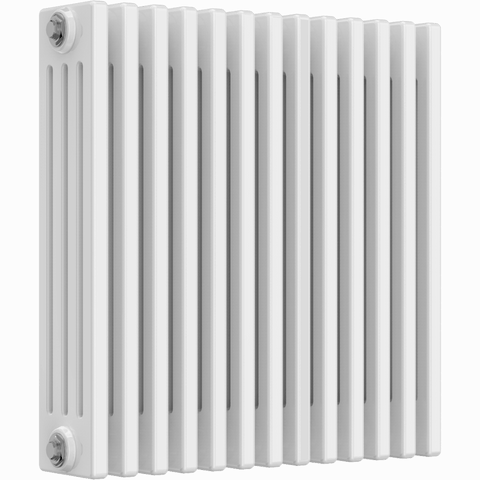

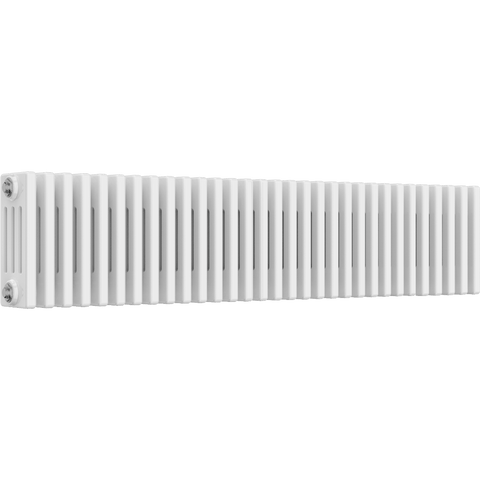

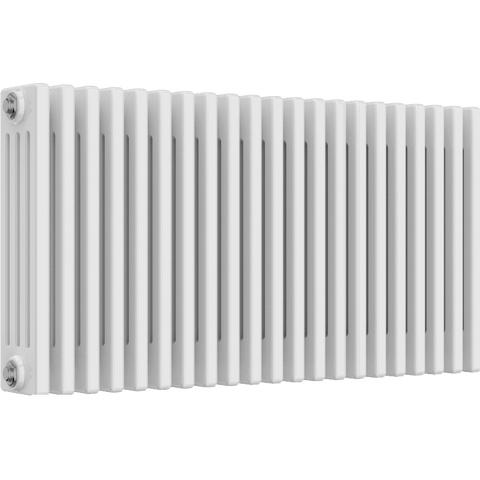

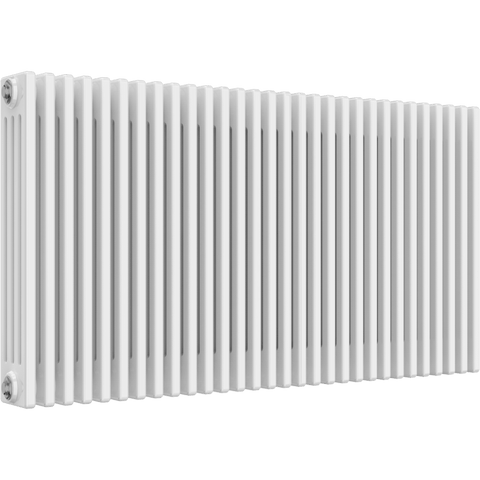

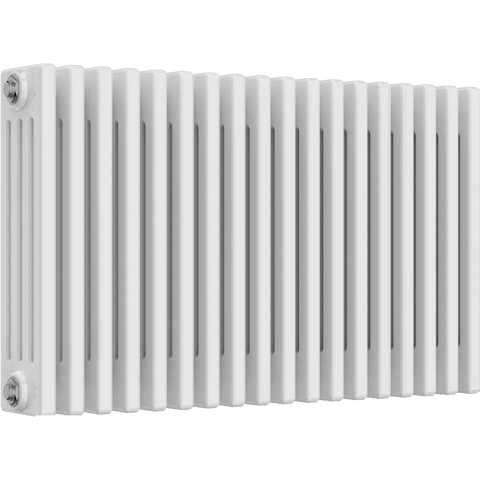

UB Trade Classic 4 Column Horizontal Radiator

UB Trade Classic Column 4 Column Horizontal Radiator - White

£163⁰⁰
Save £179

Quantity

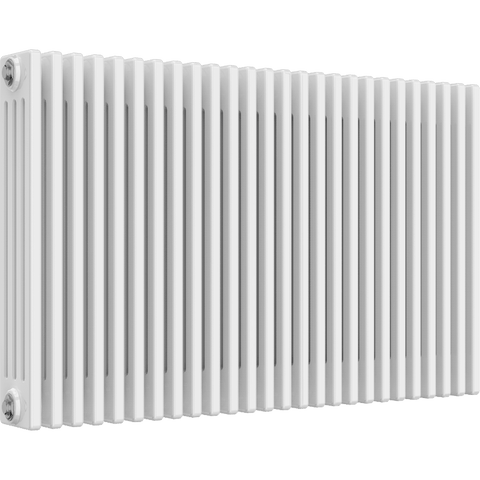

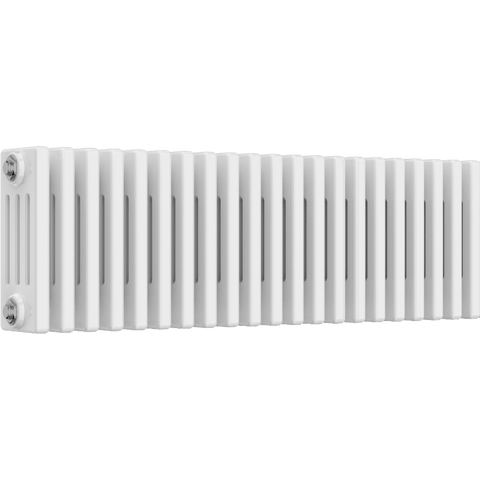

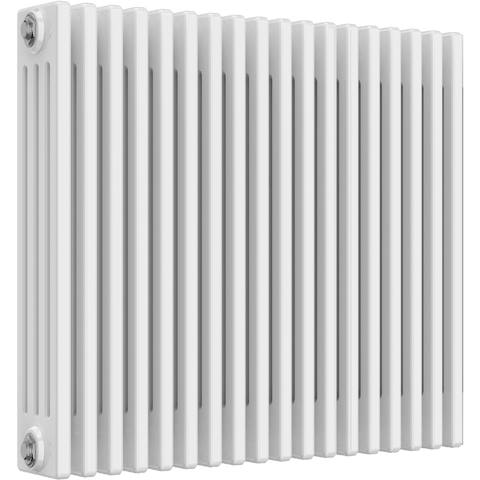

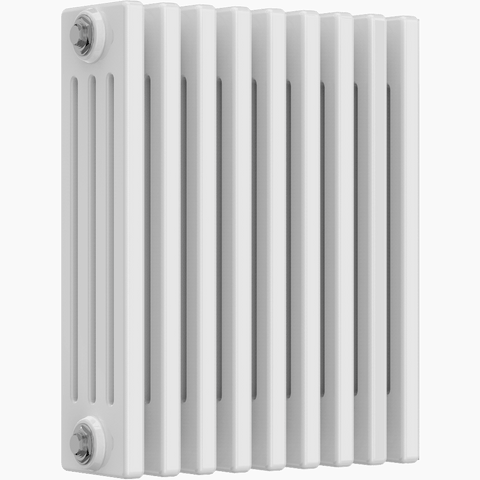

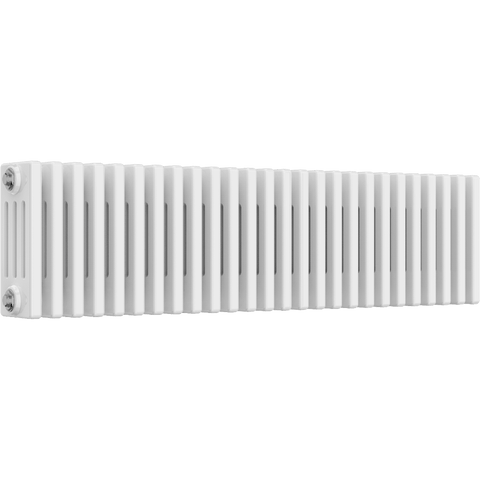

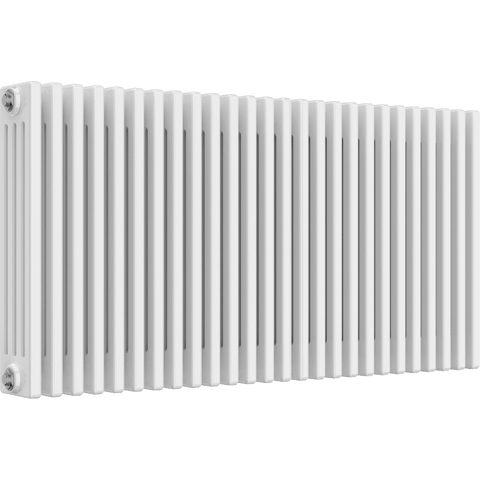

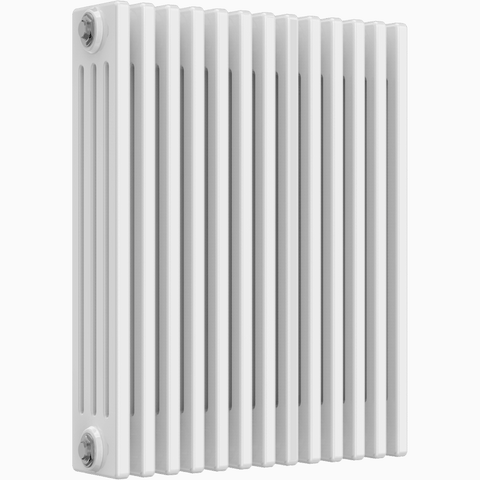

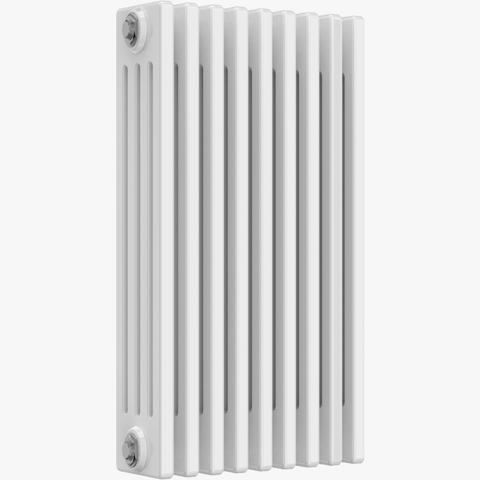

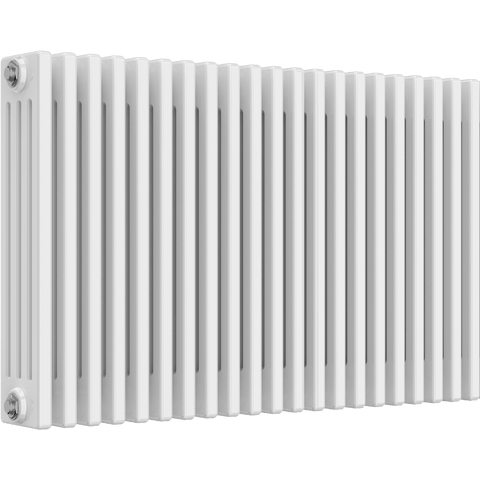

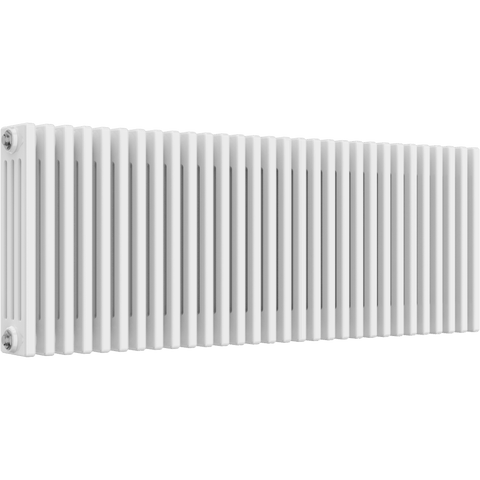

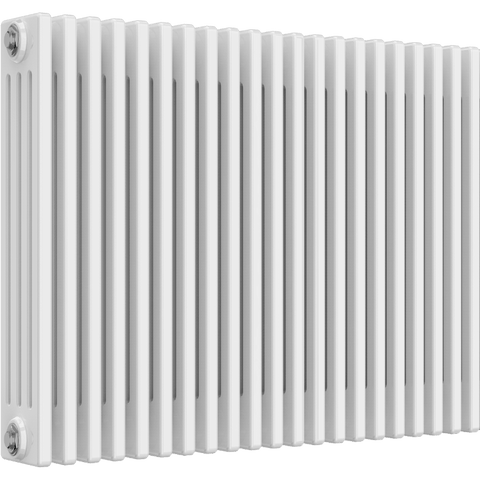

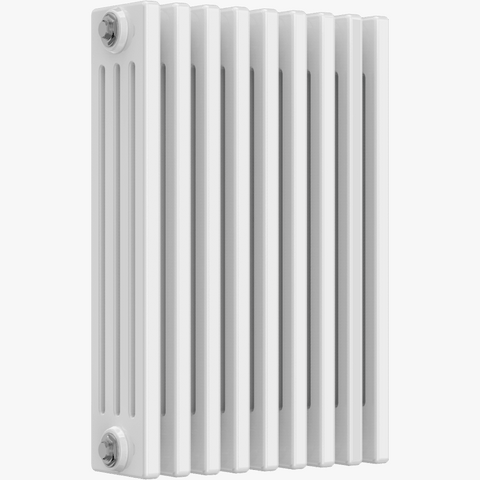

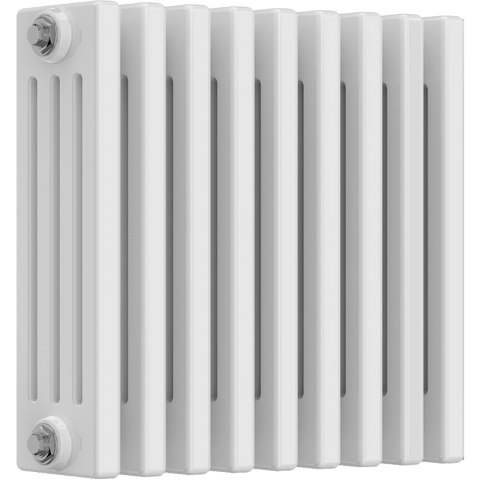

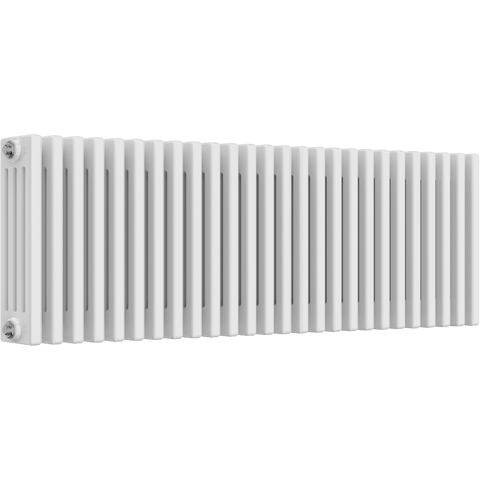

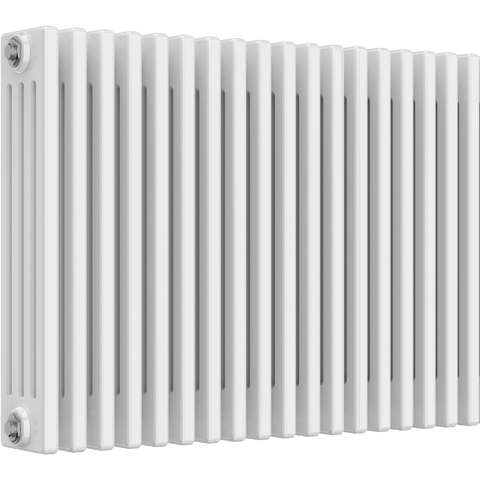

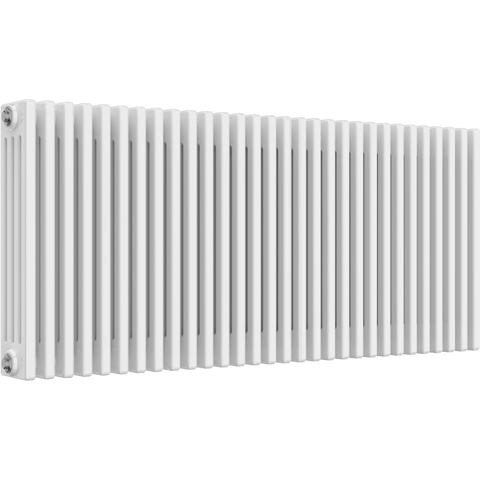

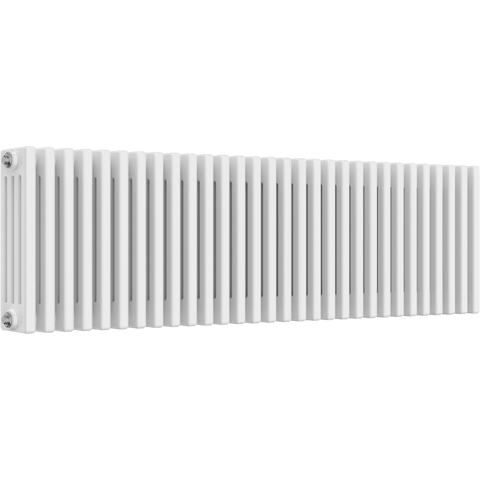

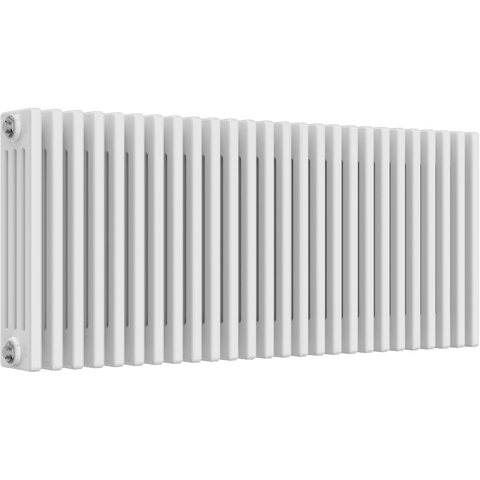

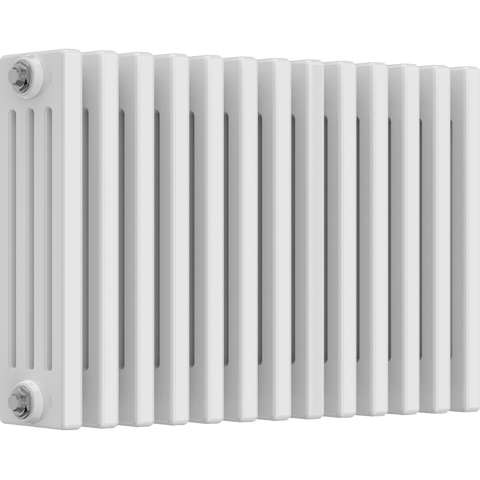

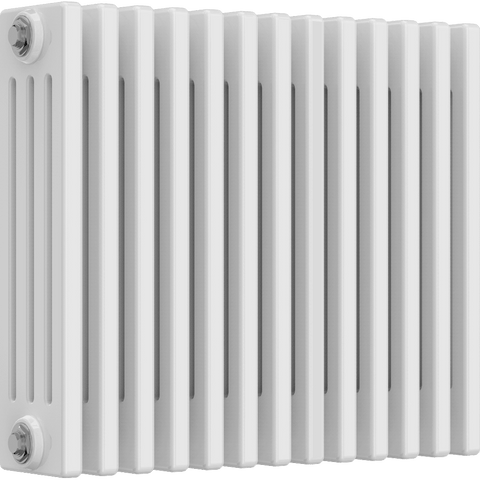

UB Trade Classic Column 4 Column Horizontal Radiator - White

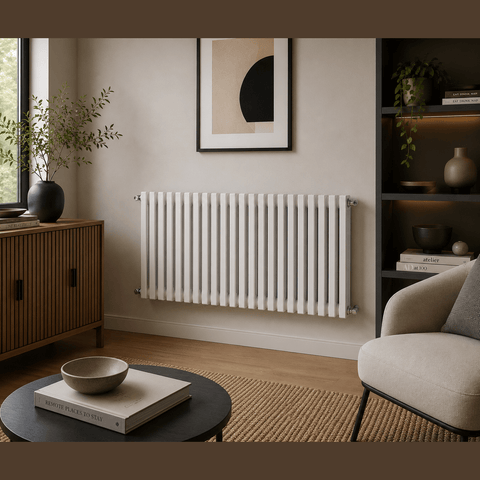

The UB Trade Classic Column 4 Column Horizontal Radiator - White is a traditional column radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.

The Trade Classic Column range has a timeless column radiator appearance, making it ideal for both period-inspired and contemporary spaces.

Key Features

Premium quality steel construction
5 year manufacturer guarantee
White finish
Horizontal installation
Suitable for central heating systems
Available in multiple size options
Wall brackets, air vent and end plug supplied

Technical Specifications

Size	Pipe Centres	Wall to Pipe Centres	Wall Distance	Sections	Heat Output ΔT60
300 x 830 mm	830 mm	95 mm	160 mm	18	3117 BTU / 914 W
300 x 965 mm	965 mm	95 mm	160 mm	21	3636 BTU / 1066 W
300 x 1190 mm	1190 mm	95 mm	160 mm	26	4502 BTU / 1320 W
300 x 1370 mm	1370 mm	95 mm	160 mm	30	5196 BTU / 1524 W
400 x 425 mm	425 mm	95 mm	160 mm	9	2026 BTU / 594 W
400 x 605 mm	605 mm	95 mm	160 mm	13	2626 BTU / 858 W
400 x 830 mm	830 mm	95 mm	160 mm	18	4052 BTU / 1188 W
400 x 965 mm	965 mm	95 mm	160 mm	21	4727 BTU / 1386 W
400 x 1190 mm	1190 mm	95 mm	160 mm	26	5853 BTU / 1716 W
400 x 1370 mm	1370 mm	95 mm	160 mm	30	6755 BTU / 1981 W
500 x 425 mm	425 mm	95 mm	160 mm	9	2533 BTU / 743 W
500 x 605 mm	605 mm	95 mm	160 mm	13	3658 BTU / 1073 W
500 x 830 mm	830 mm	95 mm	160 mm	18	5065 BTU / 1485 W
500 x 965 mm	965 mm	95 mm	160 mm	21	5910 BTU / 1733 W
500 x 1190 mm	1190 mm	95 mm	160 mm	26	7316 BTU / 2145 W
500 x 1370 mm	1370 mm	95 mm	160 mm	30	8443 BTU / 2476 W
600 x 425 mm	425 mm	95 mm	160 mm	9	3000 BTU / 880 W
600 x 605 mm	605 mm	95 mm	160 mm	13	4334 BTU / 1271 W
600 x 830 mm	830 mm	95 mm	160 mm	18	6001 BTU / 1760 W
600 x 965 mm	965 mm	95 mm	160 mm	21	7001 BTU / 2053 W
600 x 1190 mm	1190 mm	95 mm	160 mm	26	8668 BTU / 2542 W
600 x 1370 mm	1370 mm	95 mm	160 mm	30	10001 BTU / 2933 W
750 x 425 mm	425 mm	95 mm	160 mm	9	3750 BTU / 1100 W
750 x 605 mm	605 mm	95 mm	160 mm	13	5418 BTU / 1589 W
750 x 830 mm	830 mm	95 mm	160 mm	18	7501 BTU / 2200 W
750 x 965 mm	965 mm	95 mm	160 mm	21	8751 BTU / 2566 W
750 x 1190 mm	1190 mm	95 mm	160 mm	26	10835 BTU / 3177 W
750 x 1370 mm	1370 mm	95 mm	160 mm	30	12501 BTU / 3666 W

Installation note: For pipe centre measurement including valves, add 90mm accordingly.
