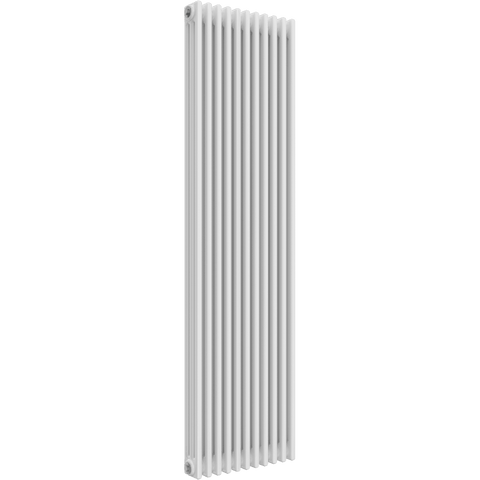

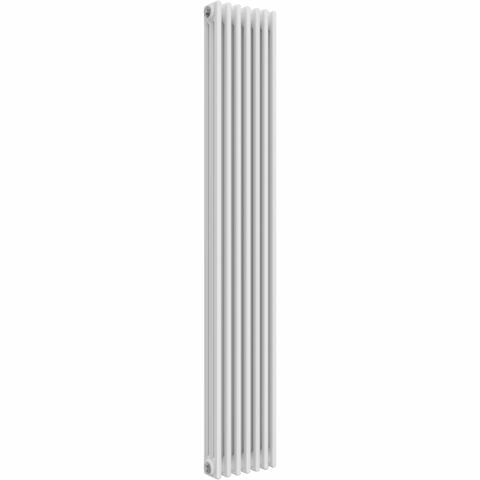

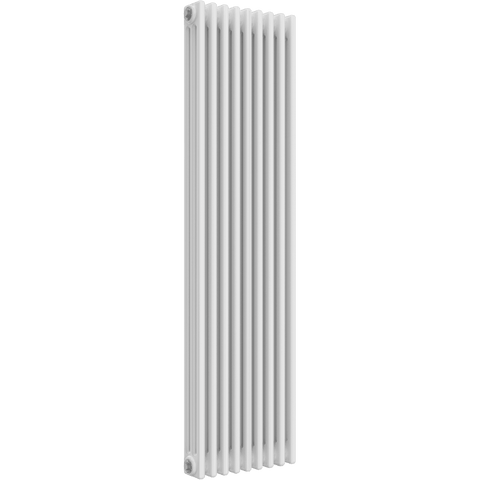

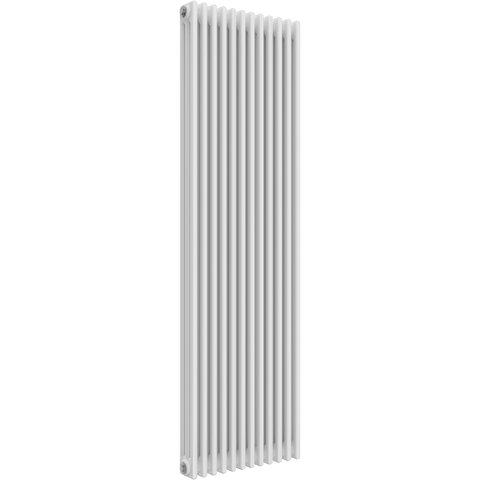

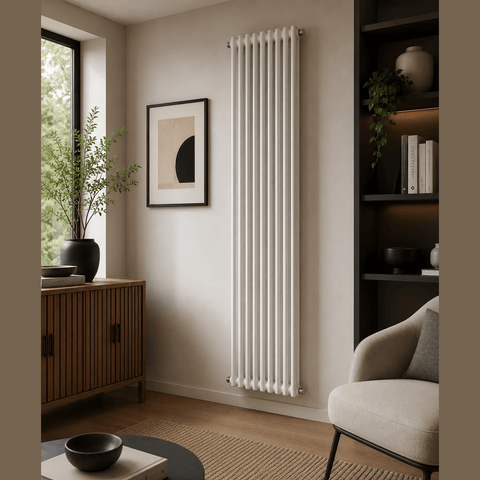

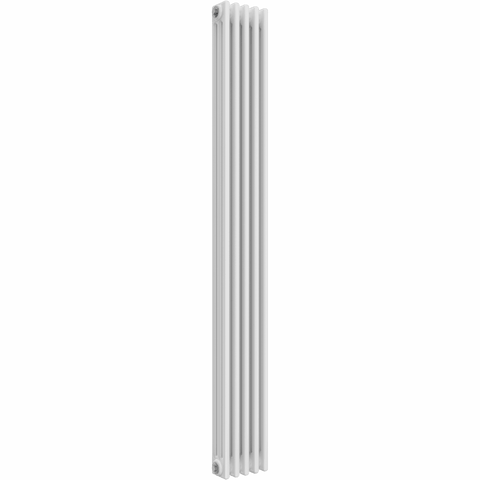

UB Trade Classic Column 3 Column Vertical Radiator - White
UB Trade Classic Column 3 Column Vertical Radiator - White
The UB Trade Classic Column 3 Column Vertical Radiator - White is a traditional column radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Classic Column range has a timeless column radiator appearance, making it ideal for both period-inspired and contemporary spaces.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- White finish
- Vertical installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size | Pipe Centres | Wall to Pipe Centres | Wall Distance | Sections | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 1500 x 425 mm | 425 mm | 68 mm | 118 mm | 9 | 5572 BTU / 1634 W |
| 1500 x 515 mm | 515 mm | 68 mm | 118 mm | 11 | 6810 BTU / 1997 W |
| 1800 x 245 mm | 245 mm | 68 mm | 118 mm | 5 | 3680 BTU / 1079 W |
| 1800 x 335 mm | 335 mm | 68 mm | 118 mm | 7 | 5152 BTU / 1511 W |
| 1800 x 425 mm | 425 mm | 68 mm | 118 mm | 9 | 6625 BTU / 1943 W |
| 1800 x 515 mm | 515 mm | 68 mm | 118 mm | 11 | 8097 BTU / 2374 W |
| 1800 x 560 mm | 560 mm | 68 mm | 118 mm | 12 | 8833 BTU / 2590 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
