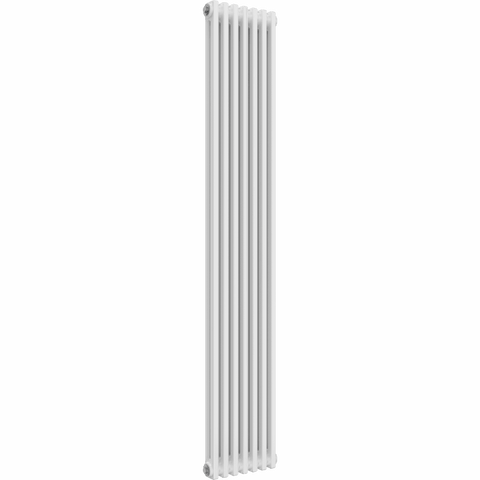

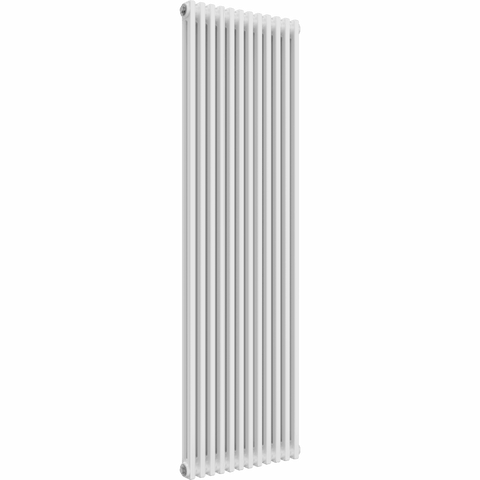

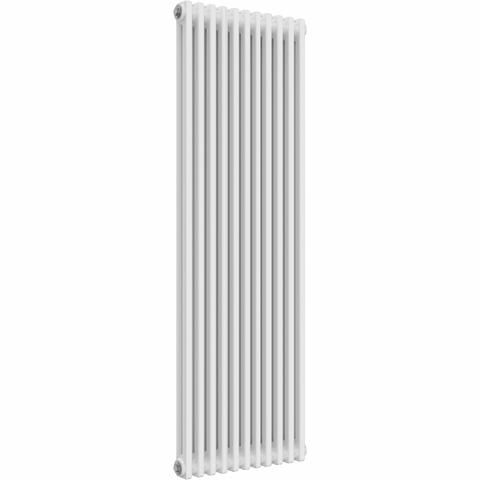

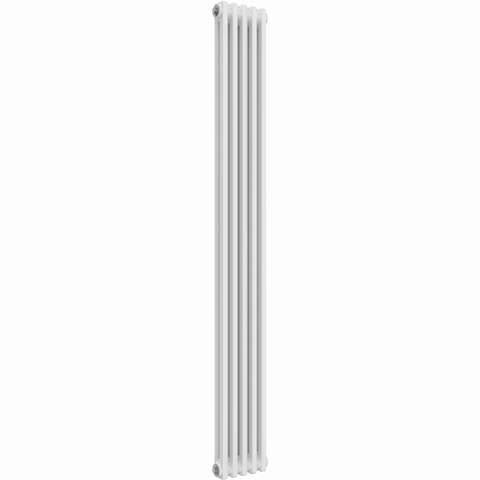

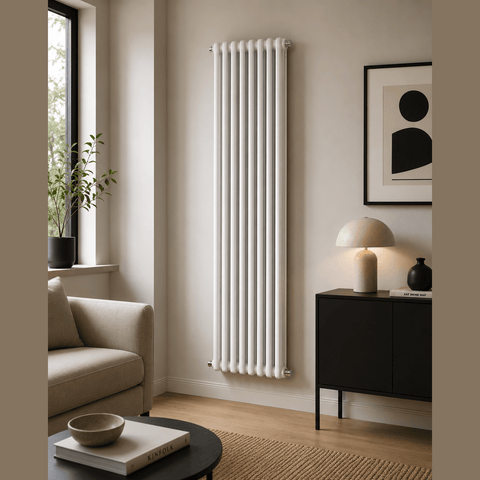

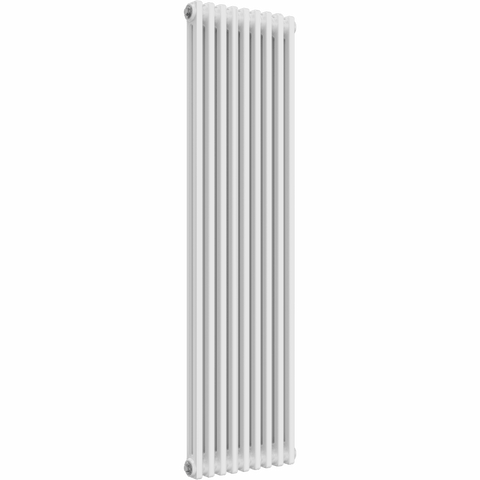

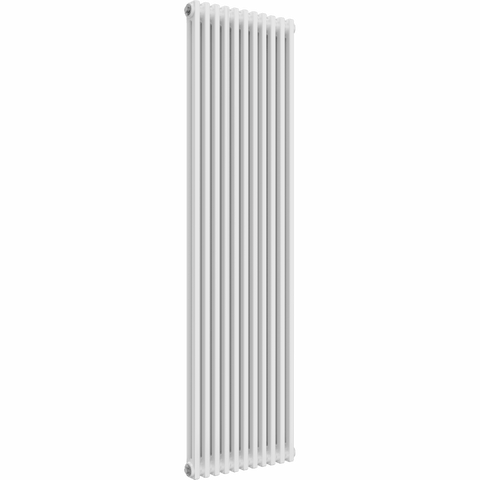

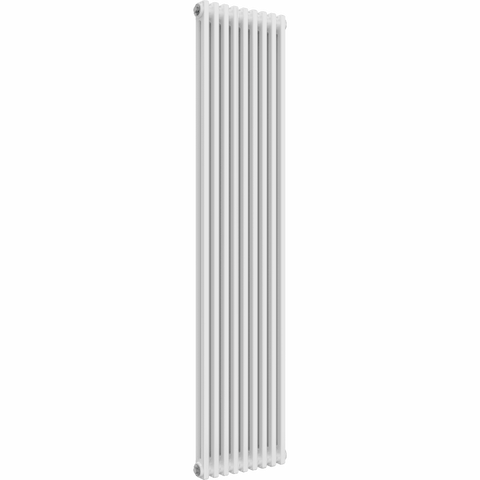

UB Trade Classic Column 2 Column Vertical Radiator - White
UB Trade Classic Column 2 Column Vertical Radiator - White
The UB Trade Classic Column 2 Column Vertical Radiator - White is a traditional column radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Classic Column range has a timeless column radiator appearance, making it ideal for both period-inspired and contemporary spaces.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- White finish
- Vertical installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size | Pipe Centres | Wall to Pipe Centres | Wall Distance | Sections | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 1500 x 425 mm | 425 mm | 68 mm | 92 mm | 9 | 4129 BTU / 1211 W |
| 1500 x 515 mm | 515 mm | 68 mm | 92 mm | 11 | 5045 BTU / 1479 W |
| 1800 x 245 mm | 245 mm | 68 mm | 92 mm | 5 | 2705 BTU / 793 W |
| 1800 x 335 mm | 335 mm | 68 mm | 92 mm | 7 | 3786 BTU / 1110 W |
| 1800 x 425 mm | 425 mm | 68 mm | 92 mm | 9 | 4872 BTU / 1429 W |
| 1800 x 515 mm | 515 mm | 68 mm | 92 mm | 11 | 5955 BTU / 1746 W |
| 1800 x 560 mm | 560 mm | 68 mm | 92 mm | 12 | 6495 BTU / 1905 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
