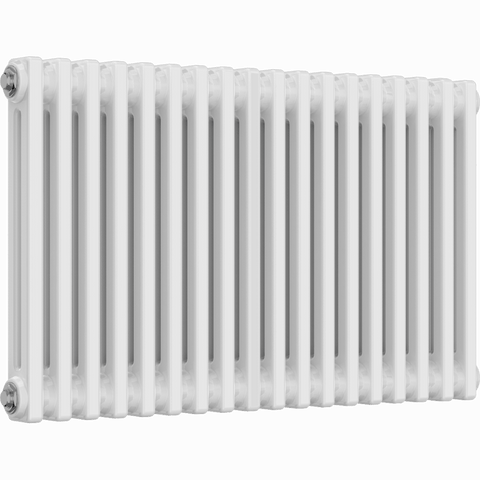

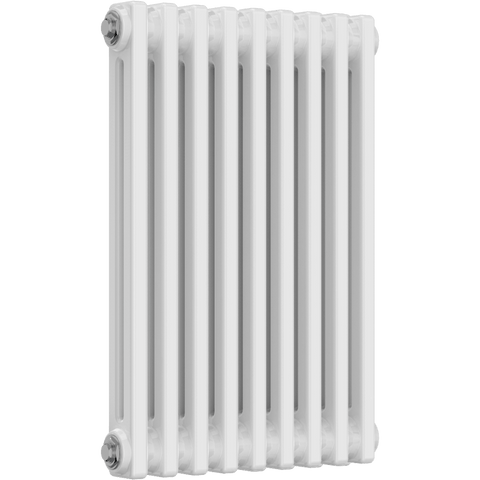

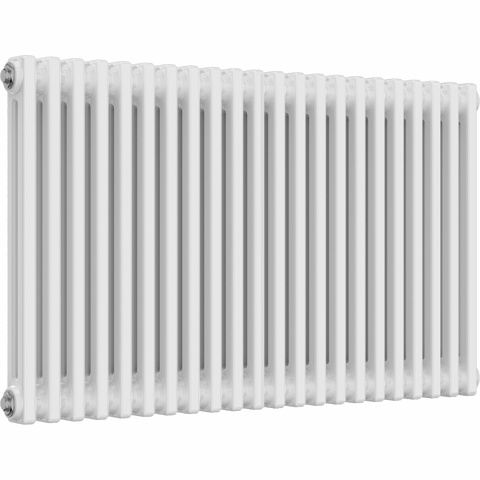

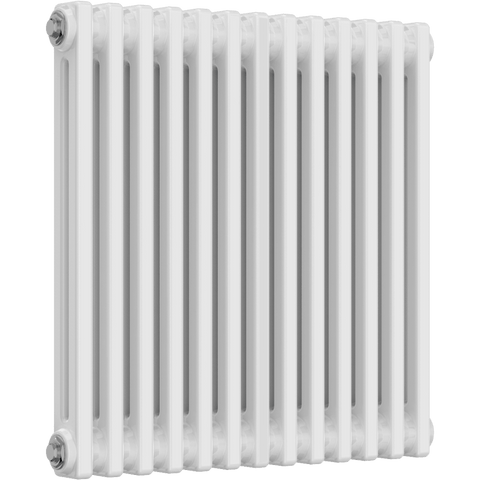

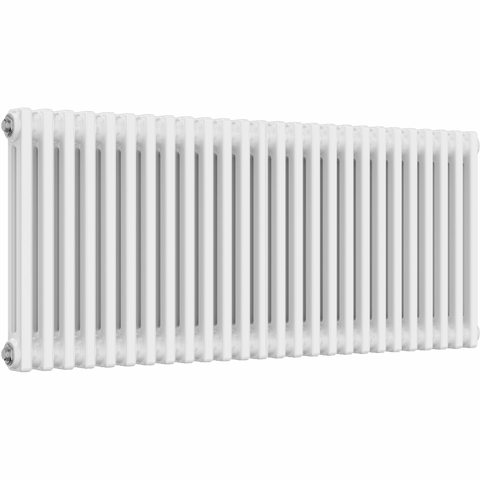

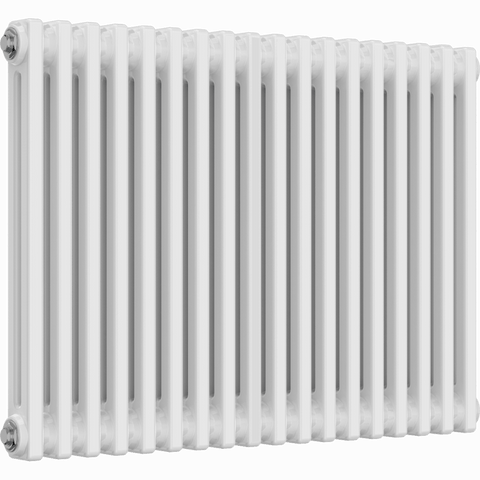

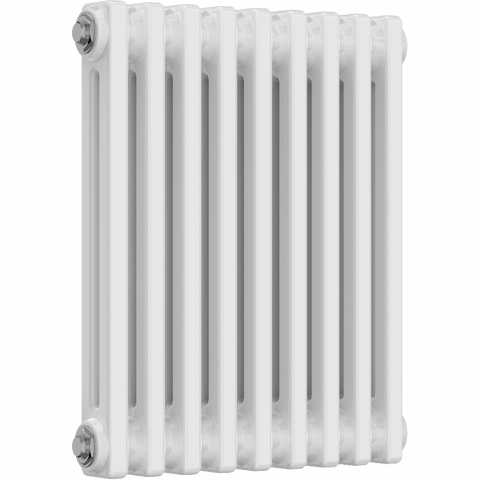

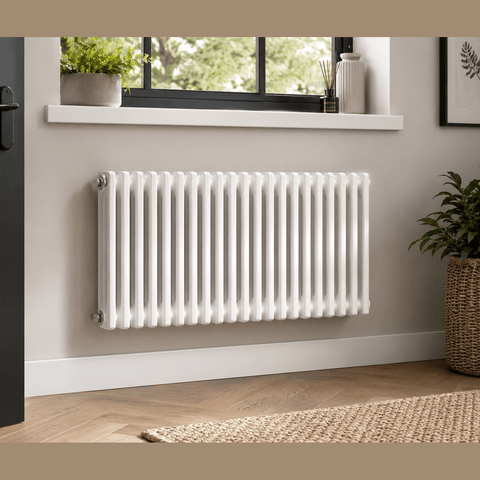

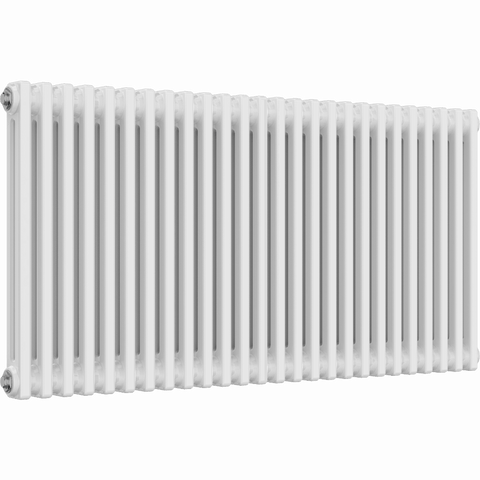

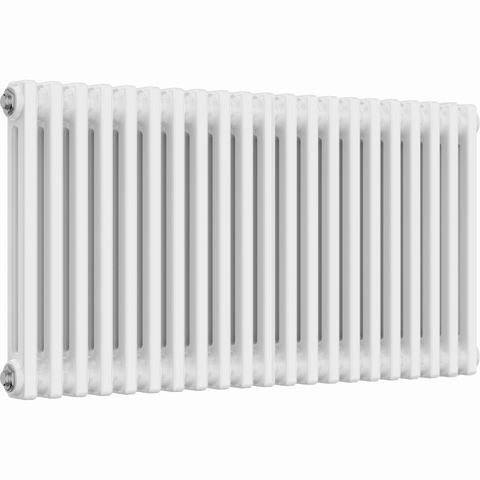

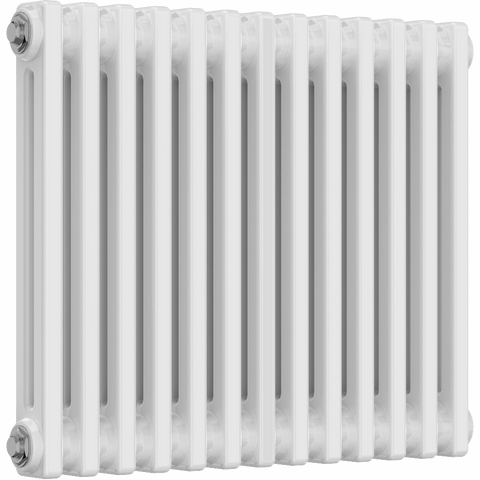

UB Trade Classic Column 2 Column Horizontal Radiator - White
UB Trade Classic Column 2 Column Horizontal Radiator - White
The UB Trade Classic Column 2 Column Horizontal Radiator - White is a traditional column radiator from the UB value heating range. Built from quality steel and supplied with a 5 year guarantee, it offers a clean, reliable heating solution for modern homes, bathrooms, hallways, living rooms and commercial interiors.
The Trade Classic Column range has a timeless column radiator appearance, making it ideal for both period-inspired and contemporary spaces.
Key Features
- Premium quality steel construction
- 5 year manufacturer guarantee
- White finish
- Horizontal installation
- Suitable for central heating systems
- Available in multiple size options
- Wall brackets, air vent and end plug supplied
Technical Specifications
| Size | Pipe Centres | Wall to Pipe Centres | Wall Distance | Sections | Heat Output ΔT60 |
|---|---|---|---|---|---|
| 500 x 425 mm | 425 mm | 68 mm | 92 mm | 9 | 1441 BTU / 423 W |
| 500 x 605 mm | 605 mm | 68 mm | 92 mm | 13 | 2083 BTU / 611 W |
| 500 x 830 mm | 830 mm | 68 mm | 92 mm | 18 | 2883 BTU / 845 W |
| 500 x 965 mm | 965 mm | 68 mm | 92 mm | 21 | 3999 BTU / 1173 W |
| 500 x 1190 mm | 1190 mm | 68 mm | 92 mm | 26 | 4165 BTU / 1221 W |
| 600 x 425 mm | 425 mm | 68 mm | 92 mm | 9 | 1700 BTU / 499 W |
| 600 x 605 mm | 605 mm | 68 mm | 92 mm | 13 | 2457 BTU / 721 W |
| 600 x 830 mm | 830 mm | 68 mm | 92 mm | 18 | 3401 BTU / 997 W |
| 600 x 965 mm | 965 mm | 68 mm | 92 mm | 21 | 4718 BTU / 1384 W |
| 600 x 1190 mm | 1190 mm | 68 mm | 92 mm | 26 | 4914 BTU / 1441 W |
Installation note: For pipe centre measurement including valves, add 90mm accordingly.
All pictures are for illustration purposes only. Actual product may vary due to product enhancement.
