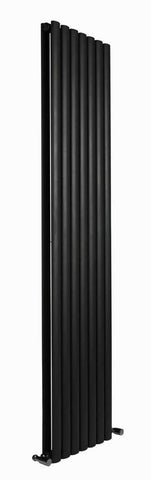

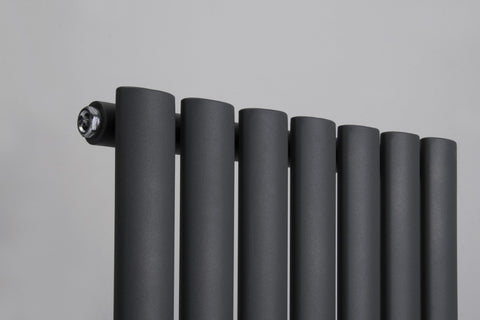

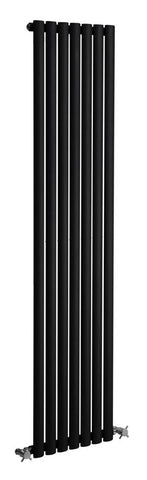

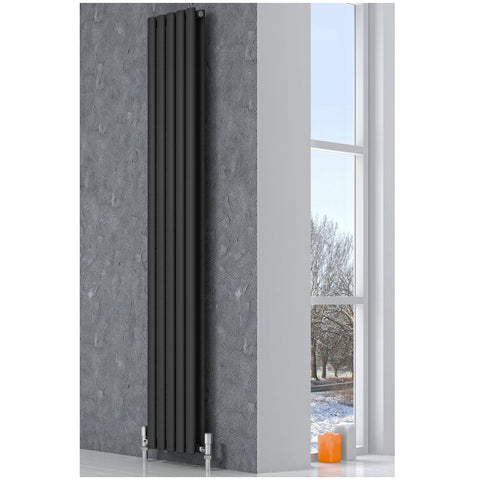

Reina Neva Vertical Double Panel Anthracite Finish Designer Radiator
The Reina Neva Double Panel Radiator highlights the easy grace and excellent simplicity of design. This vertical appliance with a charcoal anthracite finish is made of premium mild steel and is a need for your home.
For individuals who want to customize their radiators, it can also be offered in white finishes. With the sufficient amount of heat it produces, it can provide warmth and comfort for your space. The mounting brackets needed to mount this equipment on a wall are included.
It is designed to work with central heating systems. Compatible with all radiator valve types.
Features :
- Superior Quality Mild Steel
- Double Panel vertical designer radiator
- It comes in Anthracite finish
- Suitable for central heating systems only
- Supplied with Air vent and End plug
- Heat Output is measured at Delta 70°C
Specifics :
- Fuel Type: Central Heating
- Panels/Columns: Double Panel
- Color: Anthracite
- Material: Mild Steel
Overall Dimension |
Pipe
Centres mm |
Wall to
Pipe Centres mm |
Wall
Distance mm |
Heat Output | ||
Height mm |
Width mm |
Btu | Watts | |||
1500 | 236 | 236 | 65 | 103 | 3420 | 1003 |
1500 | 295 | 295 | 65 | 103 | 4252 | 1247 |
1500 | 354 | 354 | 65 | 103 | 5104 | 1497 |
1500 | 413 | 413 | 65 | 103 | 5955 | 1746 |
1500 | 472 | 472 | 65 | 103 | 6807 | 1996 |
1500 | 531 | 531 | 65 | 103 | 7656 | 2245 |
1800 | 236 | 236 | 65 | 103 | 4103 | 1203 |
1800 | 295 | 295 | 65 | 103 | 5104 | 1497 |
1800 | 354 | 354 | 65 | 103 | 6123 | 1796 |
1800 | 413 | 413 | 65 | 103 | 7145 | 2095 |
1800 | 472 | 472 | 65 | 103 | 8166 | 2395 |
1800 | 531 | 531 | 65 | 103 | 10395 | 3048 |
Inclusions :
- Brackets
- Fixing Kit
- Air Vent,
- Blanking Plug
***The valves shown in the image are not included
NOTE: Our radiators are in central heating only. If you want to have this radiator as electric only or dual fuel, please feel free to contact us. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
